SWIVEL JOINTS

LCS Oil Tools offers Swivel Joints manufactured by Windlass. These are metal pipe fittings with integral ball bearing swivel joints.

Features include:

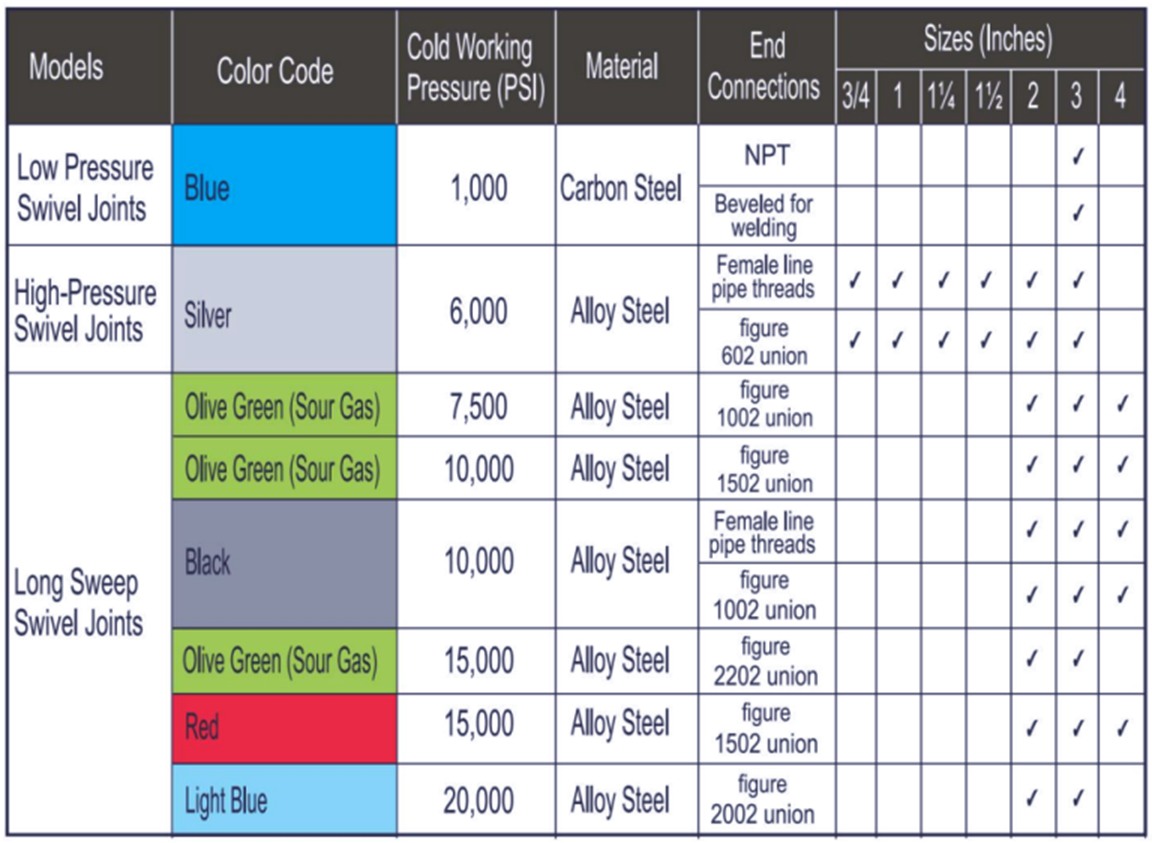

Specifications Of Swivel Joints

  • Smooth Rotation And Movement Without Sacrificing Strength And Integrity Of The Steel.
  • Streamlined Bore Minimizes Flow Restrictions, Turbulence And Pressure Drop.
  • Long-Sweep Swivel Joints Have Extra-Long Radius Elbows For Better Flow Characteristics.
  • Manufactured Specifically For High Pressure Applications.
  • Dual And Tri-Race Ball Bearing Swivel Joints Are Matched To Load Capacities & Service Conditions.
  • All Ball Races Are Either Flame Hardened, Carburized & Hardened Or Snap-In Stainless Steel.
  • All Swivel Joints Are Field Repairable And Easy To Use. Repair Kits Are Available.
  • Eight Short Radius Swivel Joint Styles And Configurations Are Available.
  • Threaded, Integral Wing Union, Beveled For Welding Or Flanged End Connections Are Available.
  • Sizes Available 3/4" To 4" Furnished With High Nitrile Packing And Brass Or Stainless Steel Ring.
  • All Joints Are Specially Heat Treated To Achieve Optimal Hardness.
  • All Materials Meet ASTM And/Or AISI Standards.
  • 100% Quality Control And Testing.
  • Available In Stock At Our Distribution Center In Houston And Dubai.
  • Sour Gas Swivel Joints Are Manufactured In Accordance With The National Association Of Corrosion Engineers (NACE) Standard MR-01-75 & The American Petroleum Institute's (API) Standard RP-14-E.

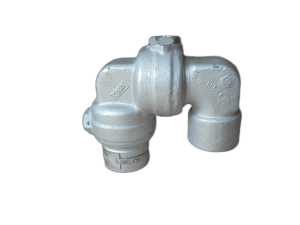

    • High Pressure Short Radius Swivel Joints

    Available in sizes 3/4” through 3” for 6,000 PSI, non-shock cold working pressure. All sizes available in eight styles for 360°rotation in one, two or three planes. These Swivel Joints are recommended for hydraulic control lines, mud lines, rotary, line connections, BOP lines, test lines, water lines, offshore wellhead connections, cementing, circulating hoses and choke-kill lines.


    Features include:

  • Smooth rotation and movement without sacrificing strength and integrity of the steel.
  • Streamlined bore minimizes flow restrictions, turbulence and pressure drop.
  • End connections are threaded or union ends.
  • All joints are specially heat treated to maintain optimal hardness and undergo strict quality control.
  • All material meets ASTM and/or AISI standards.

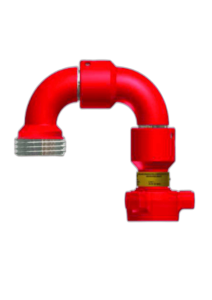

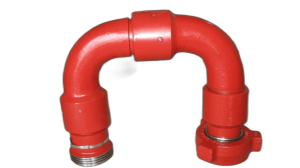

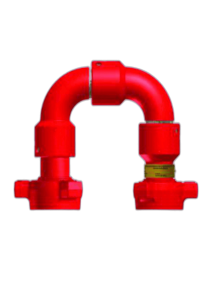

    • Extra High Pressure Long Sweep Swivel Joints

  • Our tri-race code black swivels are available in 10,000 psi working pressure with female line pipe thread and connections.

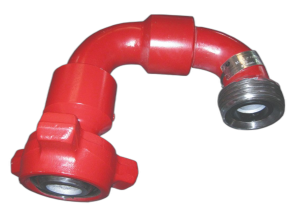

  • Our tri-race code red swivel joints are designed for the critical service conditions that exist in fracturing, cementing, acidizing and well testing. They are available in 2”, 3” and 4" sizes with 15,000 PSI working pressure and 22,500 PSI test pressure. With 1502 UNION ends for fast, easy make-up.

    • Features include:

  • Long sweep joints have extra long radius elbows for better flow characteristics.
  • Manufactured specifically for high pressure applications.
  • All swivel joints are field repairable and easy to use. Repair kits are available.
  • Tri-race ball bearing swivel joints are matched to load capacities & service conditions.
  • All ball races are carburized for standard service and snap ring design for h2s service.
  • Available in both union and threaded ends.

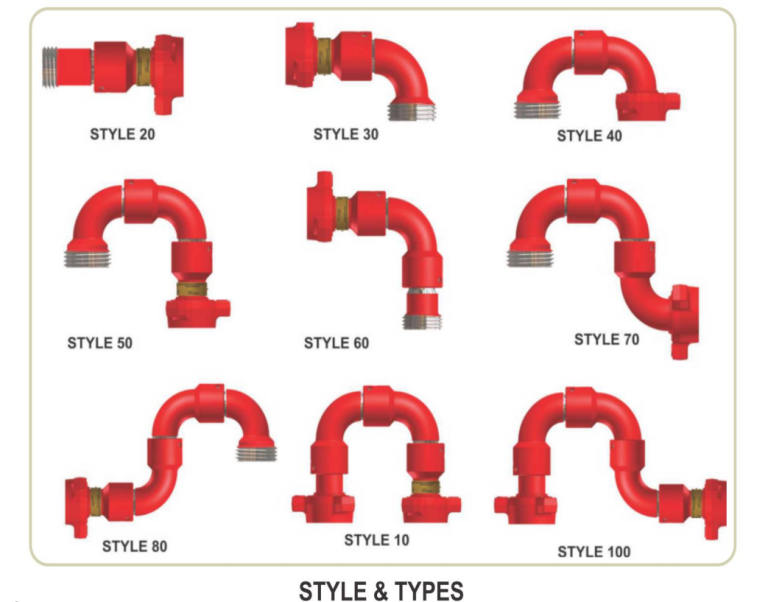

    • 2″ Union Ends

  • STYLE NO. 10-Male x Female | STYLE NO. 10-Male x Male | STYLE NO. 10 – Female x Female | STYLE NO. 20-Male x Female
  • STYLE NO. 30-Male x Female | STYLE NO. 40-Male x Female | STYLE NO. 50 – Male x Female | STYLE NO. 50-Male x Male
  • STYLE NO. 50 – Female x Female | STYLE NO. 60 – Male x Female | STYLE NO. 70 – Male x Female | STYLE NO. 80-Male x Female
  • STYLE NO. 100-Male x Female

    • 3″ Union Ends

  • STYLE NO. 10-Male x Female | STYLE NO. 10-Male x Male | STYLE NO. 10-Female x Female | STYLE NO. 30 – Male x Female
  • STYLE NO. 50-Male x Female | STYLE NO. 50- Female x Female | STYLE NO. 60 – Male x Female | STYLE NO. 80-Male x Female

    • 4″ Union Ends, 1002

  • STYLE NO. 20-Male x Female | STYLE NO. 30 – Male x Female | STYLE NO. 50 – Male x Female | STYLE NO. 10-Male x Male
  • STYLE NO. 10-Male x Female

    • 4″ Union Ends, 1502

  • STYLE NO. 50-Male x Female | STYLE NO. 60-Male x Female | STYLE NO. 10-Male x Female | STYLE NO. 10-Male x Male

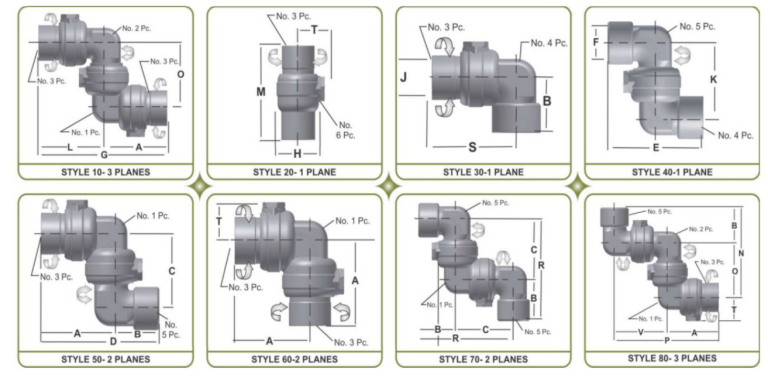

    • Size Chart Of High Pressure Short Radius Swivel Joints

    SIZE (Inches) A B C D E F G H J K L M N 0 P R S T V
    3/4 -1 4-5/8 2-23/32 4-7/32 7-11/32 5-7/16 1-3/4 9-1/4 2-7/16 1-3/4 4-7/32 4-5/8 5-3/16 6-15/16 4-7/32 8-27/32 6-15/16 4-5/8 1-7/8 4-7/32
    1-1/4/1-1/2 4-23/32 3-3/16 4-9/32 7-29/32 6-3/8 2-1/2 10-1/32 2-7/8 2-3/8 4-9/32 5-5/16 5-15/32 7-15/32 4-9/32 9-9/16 7-15/32 4-23/32 2-1/8 4-27/32
    2 5-27/32 4-1/32 5-7/8 9-7/8 8-1/16 3-1/8 12-5/16 4-1/8 3-5/16 5-7/8 6-15/32 6-21/32 10-1/32 6 12-11/32 9-29/32 5-27/32 2-21/32 6-1/2
    3 8-5/8 4-5/8 7-15/16 13-1/4 9-1/4 4-5/16 18-1/16 5-13/16 4-1/2 8-3/4 9-7/16 9-1/8 12-9/16 7-15/16 17-3/8 12-9/16 9-7/16 3-3/8 8-3/4

    Note: All dimensions are in inches.
